G40 Digifant 1 – Programmable Engine Control Unit

Dubforce Tuning are pleased to offer a plug and play, USB programmable replacement for the standard G40 Digifant 1 ECU.

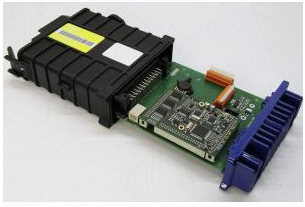

Our re-programmable engine control unit already installed in an original control unit housing and loaded with a basic setup for the PY motor (G40). This can be customised. Please just ask.

The integrated absolute pressure sensor measures up to 1.5 bar boost pressure and can be exchanged for a 3 bar sensor if required.

Main features:
– Alpha-N control (via software on intake manifold pressure for turbo, compressor changeable)
– Air flow meter is no longer required
– fully compatible with MSextra software (Megasquirt / Tunerstudio)
– freely parameterizable
– MS2 onboard / firmware MS2extra
– 16×16 injection map
– Ignition map 12×12
– USB interface
– Widebandlambda controller on board
– Freely parameterizable relay control
– electronic boost pressure control
– permanent height correction prepared (option)
– CAN bus capable

Scope of delivery:
– Re-programmable Digifant 1 Engine Control Unit
– USB cable
– Software CD
– printed manual
