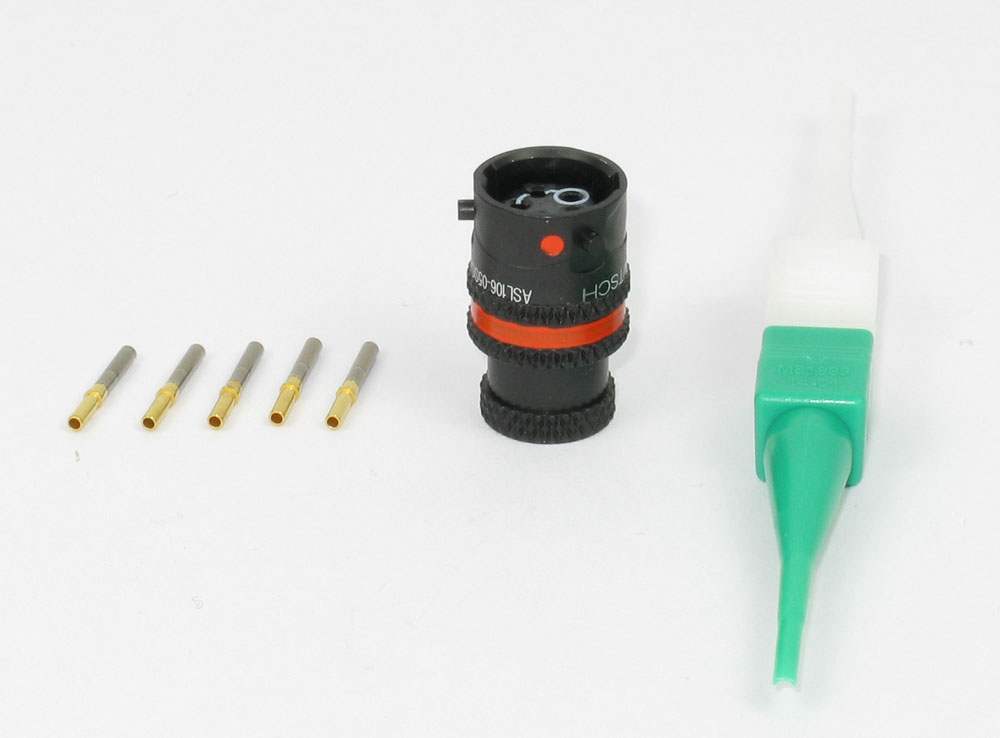

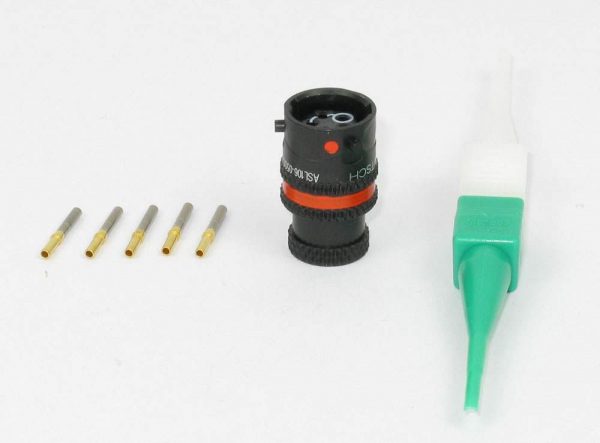

Product Type Features
Assembly Type : Electrical Connector
Product Type : Connector
Connector System : Wire-to-Wire
Shell Size : 6
Connector Style : Receptacle
Shell Type : Metal
Colour : Orange
Configuration Features
Number of Positions : 5
Preloaded : No
Keying : Keyway Polarization E
Factory Installed Backshell : No
Body Features
Feedthrough Type : No
Entry Style : Rear Insertion
Shell Plating Material : Black Zinc
Shell Material : Aluminum Alloy
Insulation Material : Hard Dielectric/Silicone
Hermetically Sealed : No
Environmental Protection : With
Environmental Protection Type : Sealed
Contact Features
Contact Layout Arrangement : 6 – 5
Contact Type : Socket
Mechanical Attachment
Polarization Code : E
Mating Alignment Type : Keyed
Mating Retention : With
Mating Alignment : With
Flange : Without
Mating Retention Type : Bayonet Peg
Dimensions
Assembly Length (mm): 18.75
Usage Conditions
Operating Temperature Range (°C): -55 – 170
IP Dust Sealing Level : 6
Fluid Resistance : Immersible
IP Water Sealing Level : 7
Operation/Application
Durability Rating (Cycles): 500
Other
Field Serviceable : Yes
