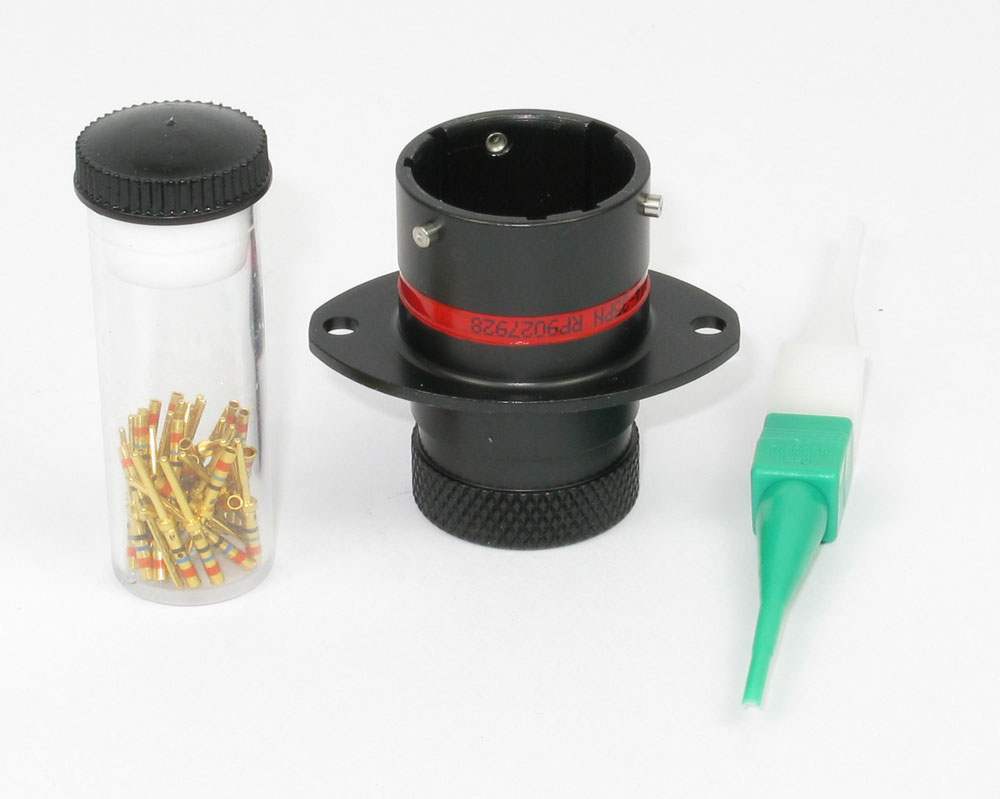

Product Type Features
Assembly Type : Electrical Connector
Product Type : Connector
Connector System : Wire-to-Wire
Sealable : Yes
Shell Size : 14
Connector Style : Receptacle
Shell Type : Metal
Configuration Features
Number of Positions : 37
Preloaded : No
Keying : Keyway Polarization N
Factory Installed Backshell : No
Body Features
Feedthrough Type : No
Entry Style : Rear Insertion
Shell Plating Material : Black Zinc
Shell Material : Aluminum Alloy
Insulation Material : Hard Dielectric/Silicone
Hermetically Sealed : No
Environmental Protection Type : Sealed
Environmental Protection : With
Contact Features
Contact Layout Arrangement : 14 – 35
Contact Type : Socket
Contact Quantity (Size 22D) : 37
Mechanical Attachment
Polarization Code : N
Mating Alignment Type : Keyed
Mating Retention : With
Mating Alignment : With
Flange : 2 Hole Flange
Mating Retention Type : Bayonet Peg
Dimensions
Assembly Length (mm): 33.5
Wire/Cable Size (AWG): 22
Usage Conditions
Operating Temperature Range (°C): -55 – 175
IP Water Sealing Level : 7
IP Dust Sealing Level : 6
Fluid Resistance : Immersible
Operation/Application
Durability Rating (Cycles): 500
Other
Field Serviceable : Yes
